ATM Security Update: How To Enable TLS 1.2 Protocol

The Announcement

The PCI Security Standards Council has mandated that the use of SSL and Early TLS (i.e. TLS 1.0) protocols be discontinued effective June 26, 2018. All network providers and processors are making preparations to ensure they are compliant by the June 26, 2018 deadline. To prevent any downtime, make sure your ATM terminals have been updated with the latest software and security certificates. NOTE: This does not include TLS 1.1 or higher.

After this date, ALL ATMs using SSL or Early TLS (i.e. TLS 1.0) communications protocol will stop communicating to the Host and fail to process any transactions.

What Does This Mean?

  • Network providers are already handling the TLS 1.2 communications protocol. Therefore, as soon as possible, set the communication protocol on your ATMs to use TLS 1.2 communication protocol.
  • Anytime you visit a direct connect TCP/IP communicating ATM verify that TLS 1.2 is set.

In order to continue processing transactions …

  • TLS 1.2 Protocol MUST be enabled on your ATM Machine

Do I Need to Enable TLS 1.2?

You NEED to Enable TLS 1.2 if …

  • Your ATM is communicating via Hardwired Internet connection (TCP/IP)

You DO NOT need to Enable TLS 1.2 if …

  • Your ATM uses a phone line or wireless modem. Your machine will not be impacted if it is communicating via a phone line or cellular wireless device box already on TLS 1.2.
    • How do I know if my wireless box is TLS 1.2?

      • The chances of you having a wireless box that is not already on TLS 1.2 are low. If you are having trouble with your wireless device please call ATMDepot.com at 888.959.2269, or your Wireless Provider, with your device’s serial number. It is best to make the request while at the location where the device is in service. Our wireless department can update your device remotely.

Do I Have TLS 1.2?

If you are using software higher than the one listed below, your ATMs should function normally after April 30, 2018. It is still good practice to confirm TLS 1.2 is enabled on each of your machines.

Hyosung

– WinCE 5.0: AP V01.04.19
– WinCE 6.0: AP V6.01.13

Genmega/Hantle/Tranax

– V05.00.19

How to Enable TLS 1.2 Protocol

Hyosung

Customer Setup > Select Processor > TCP/IP Type

  1. SLS/TLS = Enable
  2. SLS/TLS Version = Up to TLS v1.2

Genmega/Hantle/Tranax

Customer Setup > Change Processor > SSL Pass Through > SSL > SSL Version = TLS 1.2


If you do not see these options, please check that you have the required software version that supports TLS 1.2 protocol for each manufacturer.

Recommendations

  • Keep Your Software Up-to-Date

    Keep your ATMs updated with the latest software to be compliant. Listed below are the latest software versions:

    Hyosung

    – WinCE 5.0:  V01.04.31
    – WinCE 6.0:  V06.01.31

    Genmega/Hantle/Tranax

    – V05.00.31a

  • Confirm EMV Enabled

    While you are updating the software on your terminal, it is important to also check that EMV is Enabled.

    The MasterCard EMV Liability Shift occurred on Friday, October 21, 2016. ATM owners are liable for fraudulent MasterCard transactions if machines are not EMV compliant.

    Hyosung

    Operator Functions > Customer Setup > Optional Function 1 > EMV > Enable

    Genmega/Hantle/Tranax

    Operator Functions > Customer Setup > Option Function > EMV – Enable

How to Enable TLS 1.2 – Infographic

How to Enable TLS 1.2

[Infographic] Bitcoin Business vs. ATM Business: Fees Explained Simply

Bitcoin. Who hasn’t heard of it? News of this new form of digital currency is sweeping the nation. Everyday it seems we hear of someone else making lots of money from blockchain. Needless to say, it keeps us interested. But, there’s been a pretty big downfall to investing in the currency lately. Transaction fees are becoming quite a problem. In December 2017, a man moving $25 of Bitcoin paid a $16 fee to do so. According to CNBC, people are paying $28 on average to make Bitcoin transactions. The average transaction fee at an ATM machine is currently around $4. Both fees have been increasing, but Bitcoin’s transaction fee is doing so at a significantly higher rate.

What is Bitcoin?

In its most simplest terms, Bitcoin is a digital currency. A cryptocurrency. Created in 2009 by anonymous user Satoshi Nakamoto, the goal was to create a decentralized electronic cash system. Decentralization is one of Bitcoin’s most important characteristics. This means that no single institution controls the bitcoin network. This puts people that don’t like institutions to have control of their money at ease. Another defining difference between common currencies and Bitcoin is pseudonymity. The system does not need to know the identity of any parties involved when Bitcoin is transacted. This anonymity attracts illegal activity which takes up almost half of Bitcoin transactions at the moment.

What is Bitcoin Infographic

Source: http://mompreneurasia.com/wp-content/uploads/2017/06/btc-1024×690.jpg

Bitcoin Transaction Fees

With so many success stories in the media, people are rushing to enter the cryptocurrency business. Transaction fees are usually the first and most visible cost that everyone in the network will experience. With more users joining in, fees are increasing. According to the graph below, transaction fees for Bitcoin in October 2017 total over 22 million dollars. The average transaction fee around that time: around $60.00. The biggest pain point most people in the network have is how much the fees are fluctuating. If you enter the Bitcoin business, it is in your best interest to check www.cryptofees.net daily, or a similar site, to find out the current average transaction fee. The constant variations and shifts keep Bitcoin miners on their toes.

Bitcoin Transaction Fees - Graphic

source: https://cryptovoices.com/network-transaction-fees/

ATM Transaction Fees

One of the most common fees we encounter everyday has been rising as well. ATM surcharges have reached an all-time high. CNBC reports Pittsburgh has the highest current average at $5.19 while San Francisco has one of the lowest at $3.90. The slowly increasing fee ensures Independent ATM Deployers continue to make a good amount of passive income. As averages continue to rise, remember to update your ATM surcharges to ensure you make more money.

Interested in learning more about the ATM Business? You’re in the right place. Don’t leave this page without getting the information you need. Download our FREE ATM Business Guide by clicking the link below.

Download Your Free Guide
ATM Fees Increasing Over Time

source: http://time.com/money/4966816/atm-fees-all-time-high/

TX Fees vs. Surcharge

Although ATM surcharges have been increasing, the fee doesn’t fluctuate as fast as Bitcoin transaction fees. The average annual increase, according to Bankrate 2017, has been 4.7% over the past 19 years. Bitcoin transaction fees are different for each transaction. On this day, the minimum Bitcoin transaction fee charged is recorded at 0.0963%, however, the largest fee recorded is 29.3309%. That’s right. Someone paid $43.00 to send $103.61. Good thing we don’t have to pay a percentage to withdraw money from an ATM.

The average ATM surcharge has been increasing lately, but it’ll be a while before it’s equal to that of Bitcoin. Most people are wondering whether getting into the Bitcoin business would be beneficial. The answer is … probably. If you’re wondering whether getting into the ATM business is profitable, the answer is yes. IADs are racking up on these surcharges that happen to increase each year. You may have to check daily what you’ll pay to transfer Bitcoin, but surcharges don’t usually change on a daily basis. The ATM business is a lot more secure and reliable, however, the Bitcoin businesses is definitely booming. We’ve created this infographic to help illustrate the difference between bitcoin fees and ATM surcharges.

Bitcoin Business vs ATM Business Fees

[Infographic] The Bitcoin Business vs The ATM Business Fees

How to Profit from the ATM Business - Free Guide

New ATM Machine ADA Standards

New ATM Machine ADA Standards

A new law affecting ATM machines has passed under the Americans With Disabilities Act (ADA) and went into effect on March 15, 2012. The new ATM machine ADA standards required full compliance by the deadline date of March 15, 2012.

If you are an ATM Operator, an ATM company or a retail merchant operating one or many ATM machines, these new requirements will affect every active terminal in your ATM portfolio or retail location.

Today I’m going to tell what you need to know about these upcoming changes and how it will impact your business.

Starting on March 15, 2012 customers with disabilities should find using an ATM easier than ever before. Regardless of whether you agree or disagree with this new ADA requirement your ATMs must be in compliance by March 15th.

Some ATM machines may require that you make enhancements to the way your customers physically access and interact with your ATM machines. Some of the new design standards and requirements include:

Height and Reach:
The reach requirement will change from a height of 54″ to 48″ to the top working button. This will help to ensure customers can easily access the input controls of the ATM. The exception to this change is drive thru ATMs.

ATM Machine height is now 48 inches

Clear floor space:
The area in front of the machine needs to equal 48″ x 48″ (16 square feet).

ATM Machines needs 48 inches by 48 inches of clear floor space

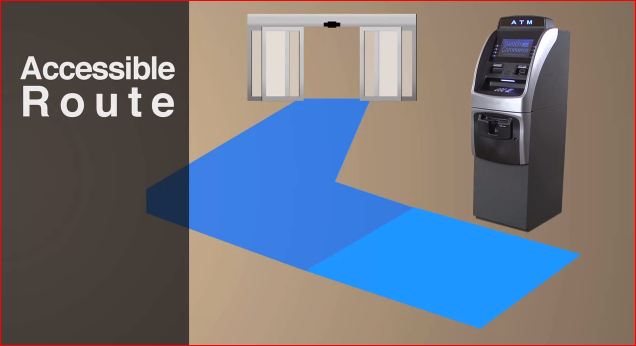

Accessible route:
One unobstructed side of the clear floor space must adjoin an accessible route or another clear floor space leading up to the ATM and connecting to the clear floor space in front of the ATM. This is for wheel chair accessibility.

ATM ADA Accessible Route

Voice Guidance:

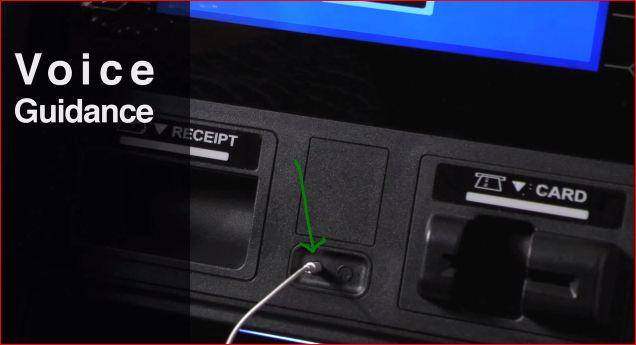

All ATMs must be speech enabled to service visually impaired customers. This may require a 3.5mm female jack be accessible for head phones.

ATM ADA Voice Guidance Standards

Display Screen:
Visibility from 40″ above the center of the floor in front of the ATM, characters on the screen must be in San Sarif font. A minimum of 3/16″ high and must contrast with their background.

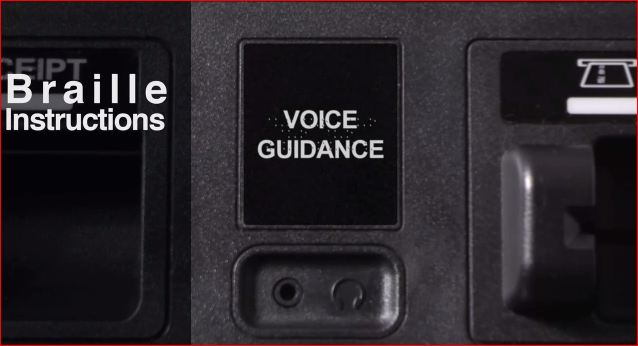

Braille Instructions:

Braille Instructions to initiate the aforementioned voice guidance feature must also be provided.

ATM ADA Standards for Braille Instructions

Function Keys:
Function keys must be designed to contrast visually from their background surfaces.

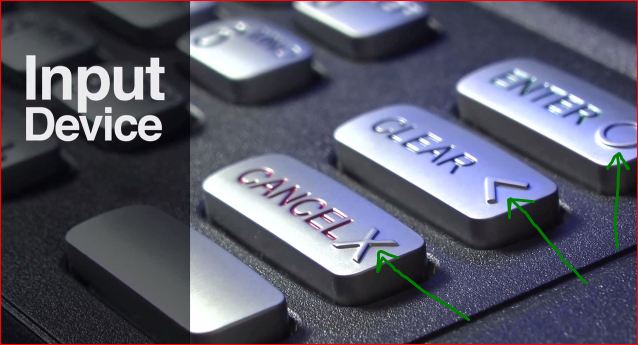

Input device:
Input device controls must be tactically discernible, meaning the key surfaces must be raised above the surrounding surfaces.

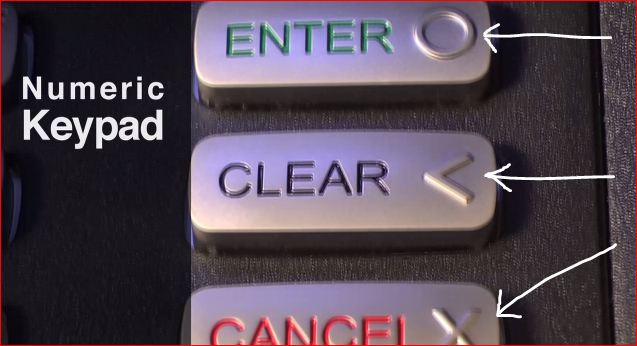

Numeric Keypads:

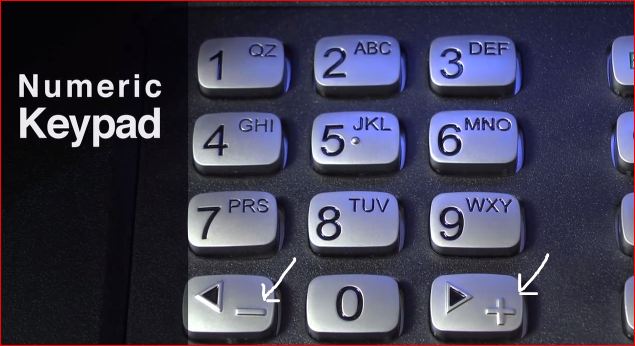

Keypads must be arranged in an ascending or descending layout. The enter key should be marked with a raised circle, the clear key with a raised left arrow, and the cancel key should be marked with a raised X. The add value key should be marked with a raised plus sign and the decrease value key should be marked with a raised minus sign.

ATM ADA Standards for Numeric Keypad

If your location has multiple ATMs the most accessible ATM must meet these new 2012 ATM standards. However, the law requires the terminal inside a location and one outside the same location be considered two separate locations. In cases like these both must be compliant.

These laws will be applied to all lobby and walk up thru-the-wall ATMs. There will be no safe harbor granted for existing units and no grandfathering of currently deployed machines.. While there are many ATM operators and banks taking a “wait and see” attitude this could potentially be a costly proposition as any ATMs that don’t meet ADA standards by the 2012 deadline could result in a civil penalty of up to $55,000 for a first offense and double that amount for subsequent offenses.

ATMDepot suggests you take this opportunity to inventory your existing ATMs and record the manufacturer, model number, and year manufactured. It would also be wise to note each terminals software and speech capabilities.

If you need help, we suggest you check with your respective vendors for more details regarding upgradability and cost. ATMDepot is able to offer several upgrade kits and exceptional pricing on new replacement ATMs in cases where you need to upgrade or replace entire machines (generally older ATM models) in order to be compliant.

Be especially careful of used or previously refurbished ATM machines at this time as there are a lot of non-compliant machines on the market that cannot be setup. Make sure the ATM you plan to purchase, especially if it’s used or refurbished, is already completely upgraded or compliant with new ADA standards. All new machines shipped from ATM manufacturers today come fully ADA compliant.

You can find more information about the ADA standards for 2012 at ada.gov

You can find us at atmdepot.com or you can follow us on Facebook, Twitter or Youtube.

[VIDEO] Explosives Used to Break into Machine during ATM Robbery, Thieves Caught on HD Camera

On August 11, 2017, two criminals drove their SUV up to a Gas Station ATM Kiosk with a plan. They planned to execute an ATM robbery by blowing up the ATM with some sort of liquid explosive. It is clear from this video, it’s not the first time they are attempting this. They are wanted by the FBI. The authorities were very excited to see the quality of our security footage.

Authorities_On_Scene

Authorities at the Crime Scene of the ATM Robbery in San Diego, CA

When you start using explosives on an ATM, you attract a lot of attention. You get the local police, sheriffs, SWAT, the Bomb Squad, ATF, and the FBI involved. That’s a lot of manpower hunting you down.

These guys are wanted by the FBI. It’s not just a local crime.  Is a few grand worth having to hide and run for the rest of your life? I don’t think so.

The suspects think they got away with it. However, as time will tell, and with the help of this HD video, and the enhancement tools Federal Law Enforcement agencies have available, they will most likely do time behind bars for this ATM robbery.  Maybe they will save all the money they stole to pay for their lawyer. They will need it.

I’ve been in the ATM business since 1994. Since then, I’ve helped hundreds of Independent ATM Deployers (IAD’s) start, run, and maintain successful ATM businesses. I’ve personally sold or installed hundreds and hundreds of ATM machines. I currently manage thousands of machines and hundreds of thousands of ATM transactions nationwide and I’ve never, ever seen anything like this.

This location has been a customer of ours for over a decade. We’ve never had any issue until we installed a new kiosk.  While this small kiosk does not appear to be bomb proof, the old kiosk building we used previously onsite was. Unfortunately for us the gas station – car wash is undergoing a remodel and needed to demolish the building, so we had to move the ATM to the other side of the parking lot.

In order not to inhibit the authority’s investigation, we won’t go into the details of what the authorities knew in this article.

However, now that we know all the details we can help others.

So, if you plan to install a kiosk and you are one of our customers (or want to be), please contact our office for some additional help.

We learned an expensive lesson, so we hope to use it to educate our customers.

ATM Depot can certainly help you avoid the same fate. We thought we prepared for every security scenario but they proved us wrong on this one. The key is that we learned an awful lot from this and can now assist our customers even better when dealing with outdoor ATMs.

**** UPDATE ****

September 28, 2017

After many calls between the account manager, Jeremy, and the FBI and ATF, on this situation, we learned that the authorities were able to issue a subpoena at the home of Scott Michael Petri. We are not sure how all this went down but we speculate that the FBI was able to leverage the information obtained in the video of the ATM robbery. According to law enforcement, one of the suspects bragged to a confidential informant about the crime. Upon serving a subpoena at the suspects home, the Law enforcement authorities say they found a drill, a gas cylinder, clothing and other incriminating evidence in his home that matched the items in the surveillance video during the crime.

Court documents allege (and video shows) Petri used a cordless drill to make two holes in the ATM machine’s housing. A second unidentified suspect (now in custody) approached the ATM with an open flame (see video, looks like a cigarette) and lit a fuse.  The suspects drove to the other side of the gas station and the ATM exploded. See the entire ATM robbery (edited for time) in the video above.

Suspect_Searching

The suspect (circled) is searching for the cash box after the ATM robbery explosion

The August robbery was the second time this year an explosive device was used on an ATM in San Diego, according to the FBI.

**** UPDATE ****

October 5, 2017

Scott Michael Petri faces a charge of using an explosive to damage property relating to a robbery at the Chevron Station and Pit Stop Car Wash on Miramar Road just south of the 15 Freeway entrance. The suspect was picked up and booked on October 5th and transferred into Federal custody and is being held in the Federal Prison in Downtown San Diego by the ATF. Bail has been set at $250,000.

ATM_Suspect_Arrested

Public arrest records for Scott Michael Petri. One of the suspects in the ATM robbery.

Visa & MasterCard ATM Interchange

Visa and MasterCard Interchange Rate Comic

Effective April 2010 MasterCard International announced they have lowered the Interchange for Cirrus ATM Transactions by $0.18.  Many ATM Companies must now pass this on to the owners or operators of the ATM in the form of a network fee.

The ATM Industry Association is conducting a study on the impact of the new fee structure.

ABOUT THE AUTHORS:

Noah Wieder, Founder of ATM Depot an ATM Machine Processing Company, has been in the ATM Machines business since 1994 and was founder of the former XtraCash ATM. Jeremy Camhi, National Sales Manager, ATM Owner and resident in-house ATM Expert has been in the ATM Machines business since 1999. Follow us on Twitter
